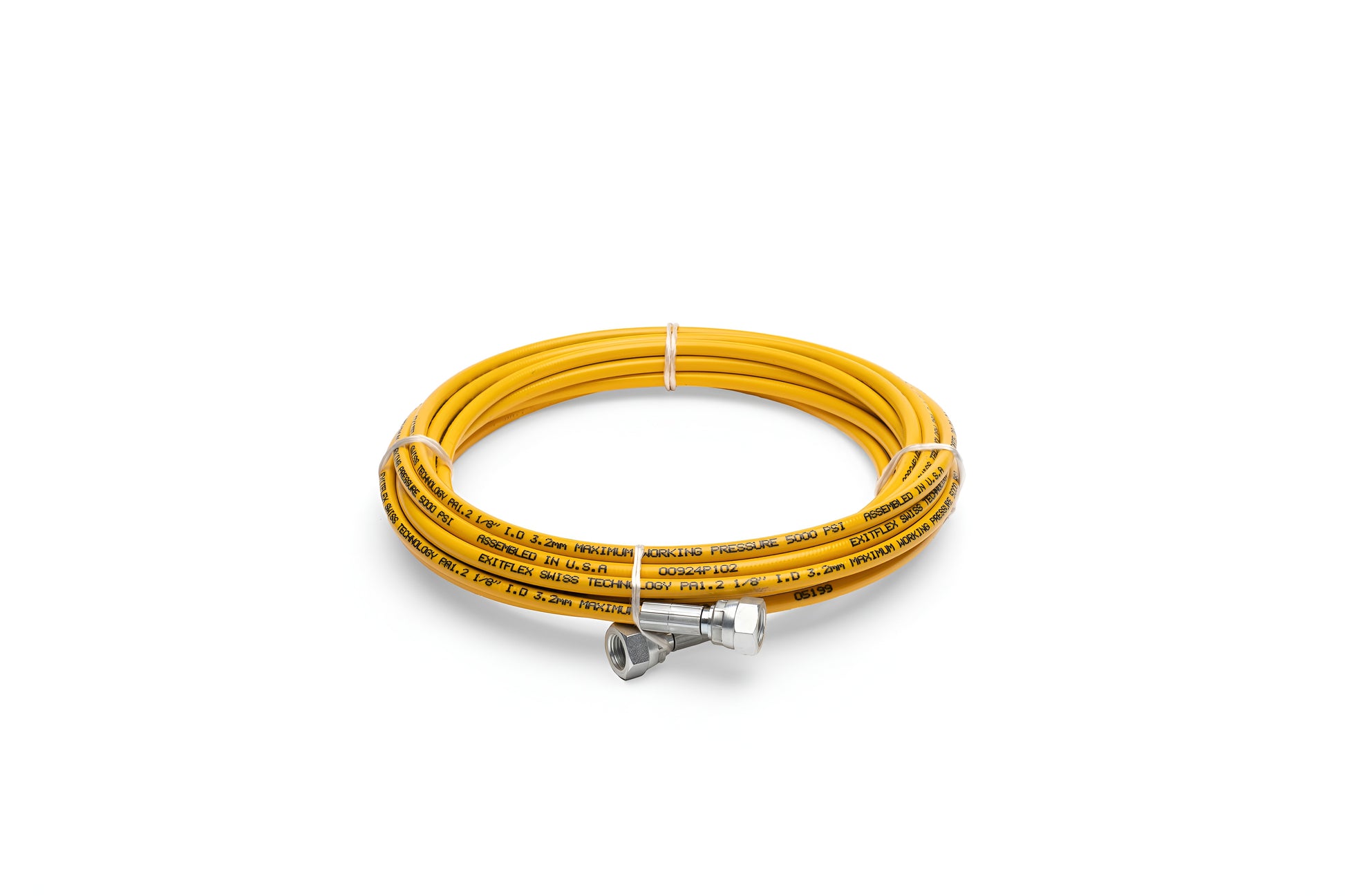

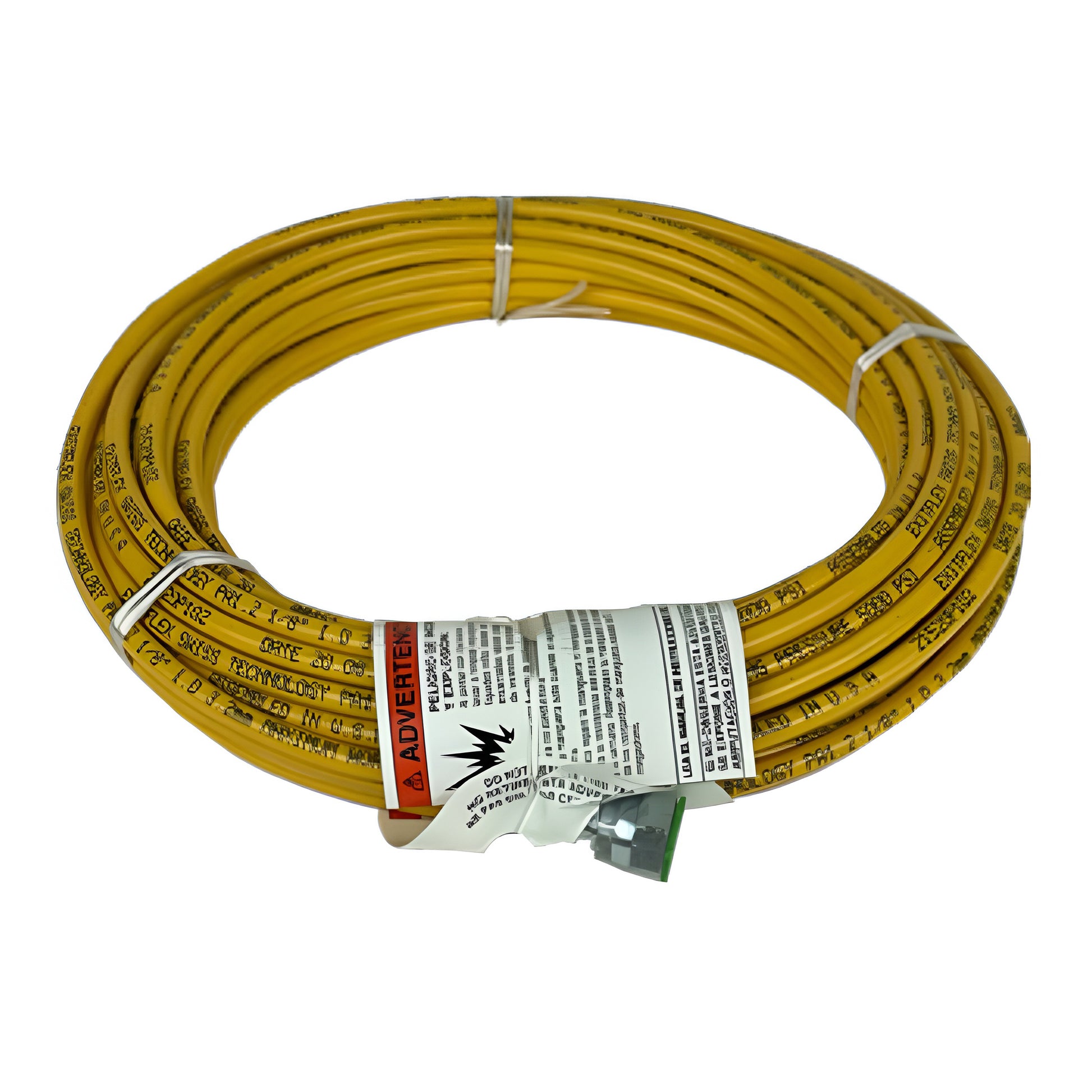

Polyhose PA12 - Whip hose 3ft - 5ft
Regular price
$49.95
Sale price
$49.95
Regular price
Unit price
CONSTRUCTION
• Inner tube: Polyamide nylon
• Reinforcement: High tensile brass
plated carbon steel
• Cover: Polyurethane
APPLICATION
• High pressure painting
• High pressure hydraulics
• High pressure solvent, paint,
chemicals
PROPERTIES
• Excellent flexibility
• Extreme abrasion resistance cover
• Static free 100% electrically
conductive
• Low diffusion rate and low flow
resistance
• UV and Ozone resistant
• Suitable for all mineral based
hydraulic oils
• Suitable for reusable couplings
Technical Specifications
| Part Number | I.D inch |
O.D inch |
W.P psi |
B.P psi |
BR/r inch |
Weight lb/ft |
Temp.Range |
|---|---|---|---|---|---|---|---|
| PA12 | 1/8" | 0.272 | 5075 | 20300 | 0.984 | 0.040 | -40°F to 200°F |
| Stock Assemblies | |||
|---|---|---|---|
| Part No. | Length | Fittings | Color |
| PA12-3FM | 3 | 1/4" FM | Yellow |
| PA12-5FM | 5 | 1/4" FM | Yellow |
| PA12-15FBE | 15 | 1/4" FBE | Yellow |
| PA12-25FBE | 25 | 1/4" FBE | Yellow |
| PA12-50FBE | 50 | 1/4" FBE | Yellow |
